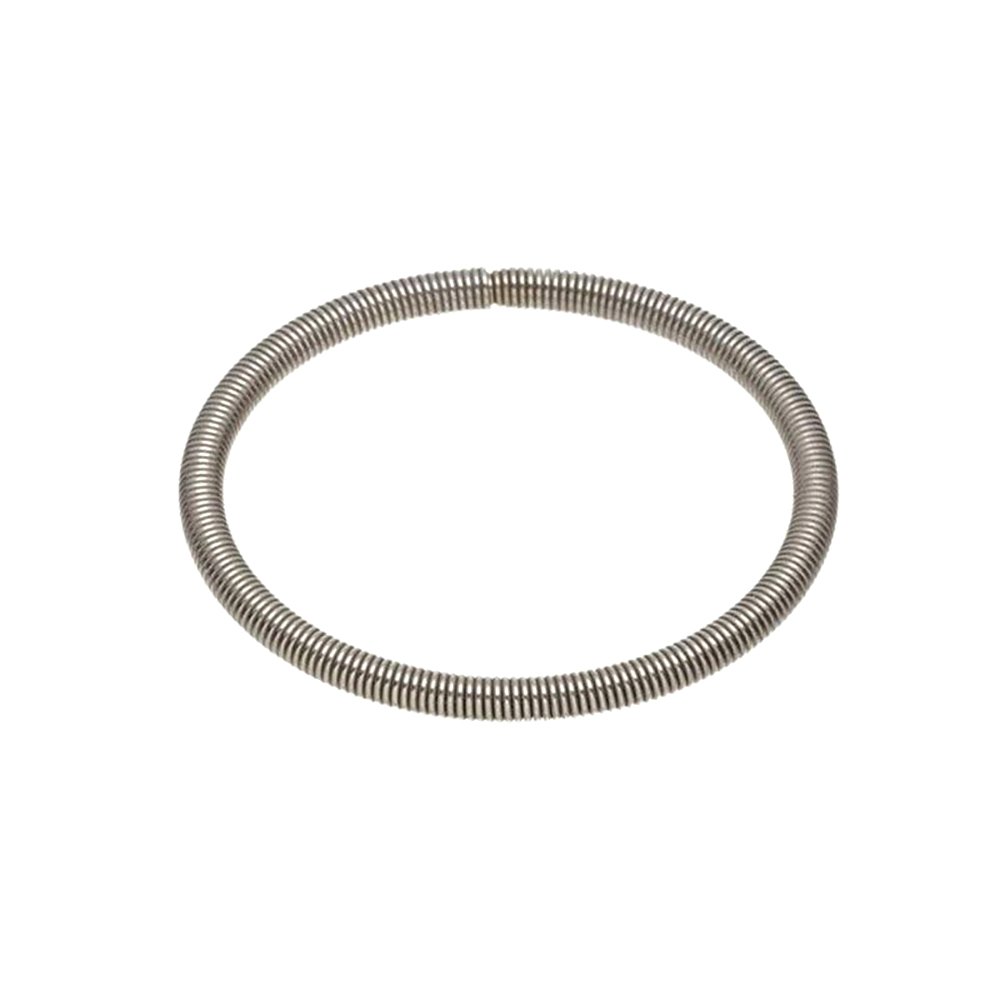

A distinctive feature of a garter spring (lip spring) is its ability to form a continuous ring while fully maintaining all the functional properties of the spring. This ring-shaped configuration is achieved through specially designed conical or tapered ends, which allow one end of the garter spring to be securely screwed or fitted into the opposite end, ensuring a reliable and stable connection during operation.
The garter spring applies a constant and uniform radial force of garter springs in oil seals to the sealing lip, helping the seal maintain both dynamic and static integrity. By providing consistent pressure around the shaft, the garter spring effectively prevents grease and lubricant leakage while also protecting the sealing system from the ingress of dust, moisture, and other external contaminants, even under demanding operating conditions.
What is the garter spring in an oil seal for?
Seal Pressure Maintenance
The primary role of a garter spring in an oil seal is to provide a continuous and evenly distributed radial force to the sealing lip, which is usually made from materials such as nitrile rubber, silicone, or other elastomers. This radial load distribution in rotary shaft seals ensures that the sealing lip maintains consistent contact with the shaft surface throughout operation. The CR 21670 Oil Seals (55-90-8mm) is a great example, as its garter spring ensures proper sealing pressure over time. Understanding how garter springs maintain sealing lip contact is essential for any high-performance application.
As oil seals are exposed to changing working conditions—such as temperature fluctuations, pressure variations, shaft runout, and natural material wear—the sealing lip alone may not be able to maintain sufficient contact over time. This is where the garter spring becomes essential. By compensating for wear and dimensional changes, the garter spring helps the seal adapt to these variations and maintain its sealing performance. For instance, the CR 11366 Radial Shaft Seal utilizes this technology to ensure long-lasting sealing power despite these challenges, often serving as a benchmark for SKF oil seal equivalents with garter spring technology.
In practical applications, the garter spring continuously energizes the sealing lip, creating a reliable barrier that prevents lubricants, oils, and other fluids from leaking out of the system. At the same time, it blocks dust, moisture, and external contaminants from entering the mechanism. This is a vital feature, as it helps to protect critical components and maintain optimal performance. The TC oil seal demonstrates how the garter spring works to keep contaminants out, ensuring smooth operation under demanding conditions. Thanks to this garter spring function in dynamic and static sealing, oil seals equipped with a garter spring offer improved reliability, longer service life, and better performance.
Compensation for material wear and thermal cycling
Materials used in sealing components, such as sealing sleeves, are inevitably subject to wear, aging, and gradual deformation over time. In addition, thermal cycling during system operation causes the material to repeatedly expand and contract. The garter spring applies a continuous and uniform radial force that compensates for these effects, allowing the seal to adapt to dimensional changes caused by wear and temperature fluctuations. By maintaining consistent compression throughout the service life, the mechanical role of oil seal spring in lubricant retention ensures stable sealing performance and prevents leakage even under changing operating conditions.
Improved compaction efficiency
By applying a continuous and controlled radial force to the sealing element against the shaft, the garter spring significantly enhances overall sealing performance. An effective seal minimizes lubricant loss, which is critical for maintaining proper lubrication, reducing friction, and preventing premature wear or component damage. At the same time, it preserves the reliability and service life of the system by blocking the ingress of dust, moisture, and other external contaminants, especially in a double lip oil seal with garter spring for dust protection. These lubrication and sealing principles are also widely discussed in technical resources provided by Machinery Lubrication, highlighting the importance of proper lubrication management in ensuring long-term equipment reliability.
Elimination of misalignment and eccentricity of shafts
In real-world operating conditions, perfect alignment between the shaft and the seal is not always achievable. Shaft eccentricity may occur due to manufacturing tolerances, installation errors, or dynamic operating factors. The spring enables the sealing lip to compensate for shaft eccentricity with garter springs, allowing it to maintain consistent contact with the shaft and ensuring reliable sealing performance even under non-ideal conditions.
Features and functions of the garter spring in oil seals
Providing radial loading
The primary function of the garter spring is to apply a constant radial load around the shaft at the sealing interface. This consistent pressure ensures uninterrupted contact between the sealing lip of the gland and the shaft, effectively minimizing the risk of leakage and maintaining reliable sealing performance over time. This is particularly crucial for agricultural machinery oil seals for contaminated environments where external pressure is high.
Material wear compensation in garter spring seals
Over time, the materials used in the sealing lip of an oil seal—such as nitrile rubber, polyacrylate, FKM, or PTFE—may gradually wear or lose elasticity. An FKM oil seal with stainless steel garter spring is often chosen for its superior chemical resistance. The garter spring compensates for these changes by consistently maintaining the necessary radial force on the sealing lip, ensuring reliable contact with the shaft and stable sealing performance throughout the service life.
Compensation for Temperature Fluctuations
The materials used in oil seals, together with the garter springs, are engineered to accommodate temperature variations during operation. As temperatures rise and fall, sealing materials naturally expand and contract. The garter spring continuously adjusts the contact pressure of the sealing lip against the shaft, offering high temperature creep resistance in oil seal springs and ensuring a stable seal fit under changing thermal conditions.
Increased Seal Durability
By maintaining consistent radial pressure and compensating for material wear and aging, the garter spring significantly enhances the overall durability of the seal. This extended sealing performance helps in reducing maintenance costs with high durability oil seals, which is vital for the long-term reliability of vehicle and mechanical components.
Tolerance to Vibration and Shaft Misalignment
Automotive components are frequently exposed to vibration and slight shaft misalignment. The garter spring adds controlled flexibility, optimizing the oil seal spring fatigue life in high vibration applications. This ensures consistent sealing performance and preserves seal integrity even under non-ideal operating conditions.
Steering Knuckle Oil Seal Spring
The steering knuckle oil seal spring applies a continuous and uniform radial force to the sealing lip, ensuring both dynamic and static sealing integrity around the steering knuckle shaft. This constant pressure effectively prevents grease leakage while blocking the ingress of dust, moisture, and other external contaminants, helping to maintain smooth operation and optimal steering performance.
Designed to accommodate temperature fluctuations during vehicle operation, the oil seal spring compensates for the thermal expansion and contraction of the sealing lip and surrounding components. By maintaining stable contact pressure across a wide operating temperature range, it ensures consistent sealing performance and reliable operation under varying environmental and driving conditions.
By preserving seal effectiveness and protecting critical steering components from contamination and lubricant loss, the steering knuckle oil seal spring plays an important role in extending the service life of the steering knuckle and related parts. This contribution helps reduce premature wear, minimizes maintenance requirements, and lowers the frequency of component replacement.
Spring on the Oil Seal: Causes of Wear and How to Eliminate Them
The oil seal spring plays a critical role in maintaining consistent sealing pressure and preventing lubricant leakage. However, during long-term operation, the spring itself is subject to various wear mechanisms. Understanding the causes of oil seal spring failure and leakage helps extend service life and ensures stable sealing performance.
Corrosion is one of the most common causes of spring degradation. Exposure to moisture, salts, or aggressive chemicals can lead to material deterioration. This can be mitigated by using corrosion resistant garter springs for oil seals or applying protective coatings. For instance, zinc vs nickel coated garter springs for acidic environments offer different levels of protection, while stainless steel 316 garter springs for marine applications are the gold standard for salt-water resistance.
Fatigue occurs as oil seal springs are repeatedly compressed and released. Over time, cyclic loading may result in crack initiation. Proper spring design, uniform stress distribution, and routine inspection help reduce fatigue-related damage. In some cases, replacing garter springs in heavy duty shaft seals becomes a necessary part of the maintenance cycle.
Abrasive wear can develop when solid particles are present in the working medium. These particles may cause surface micro-damage. Learning how to fix oil seal spring wear in industrial gearboxes often involves improving filtration and selecting harder spring materials.
In high-temperature applications, springs may experience creep, leading to a gradual loss of force. Another critical failure mode is preventing stress corrosion cracking in garter springs, which occurs when tensile stress combines with a corrosive environment. Manufacturing processes such as stress relief or annealing can significantly reduce internal stresses.
Conclusion
The garter spring is a small yet essential component in oil seal systems, playing a decisive role in maintaining sealing pressure and ensuring long-term reliability. At QZSEALS, we believe that reliable sealing performance starts with a deep understanding of real-world applications. Our QZSEALS oil seal spring manufacturing quality control focuses on material selection and structural optimization to ensure consistent radial force. Whether you require a custom garter spring design for non-standard oil seals or standard components, QZSEALS is committed to providing dependable sealing solutions that help customers reduce maintenance costs and extend equipment lifespan.
