In the world of industrial engineering, few components are as deceptively simple yet critically important as the O-ring seal. At QZSEALS, we have spent decades manufacturing, testing, and refining these circular gaskets, establishing ourselves as a premier industrial O-ring manufacturer for mining equipment and other heavy industries. We know that a seal failing is not just an inconvenience; in sectors like aerospace or offshore drilling rigs, it can be catastrophic.
This guide is built on real manufacturing data and field feedback. Rather than offering generic definitions, we focus on material selection, seal failure analysis, and proven sealing solutions used in demanding applications. Whether you are an engineer developing a new hydraulic assembly or a maintenance manager diagnosing O-ring nibbling and spiral failure, this article is designed to support informed, engineering-level decisions regarding your next O-ring seal implementation.
The Anatomy of a Reliable Seal
An O-ring seal functions on a principle of deformation. When placed in a gland (groove) and compressed between two surfaces, the material attempts to return to its original shape. This “memory” creates a barrier that blocks the passage of liquids or gases.
However, achieving a perfect seal requires more than just rubber in a hole. It requires a precise balance of three factors:
- Groove Dimensions: The space must allow for thermal expansion and volume swell to prevent overfill.
- Compression Ratio: Too little results in leakage; too much leads to material stress and fracture.
- Material Compatibility: The chemical interaction between the O-ring seal and the media.
For general applications, standard solutions often work. However, for specialized machinery, we often recommend looking into our specific O-ring seal category to find the exact compound required, such as sealing solutions for semiconductor vacuum environments.
Material Science: Selecting the Right Compound
At QZSEALS, we process advanced knowledge in rubber, silicone, plastic, and metal materials. Choosing the wrong material is the number one cause of seal failure. Here is a breakdown based on our manufacturing data.
1. FFKM (Perfluoroelastomer): The Chemical King
When customers approach us with applications involving aggressive solvents, steam, or temperatures exceeding 300°C, standard elastomers fail. In these scenarios, we deploy high-temperature FFKM O-rings for 300°C+ applications. These chemical resistant perfluoroelastomer seals possess a chemical structure similar to PTFE but retain the elasticity of rubber. They are often specified where even FKM cannot survive.
2. FKM (Viton™) and HNBR
For the automotive and oil industries, resistance to fuels and lubricants is non-negotiable. Standard NBR is good, but Hydrogenated Nitrile Butadiene Rubber (HNBR) offers superior heat and oxidation resistance.
- FKM: Excellent for high heat and chemicals. See our specifications: AS568 FKM 90 Shore A O-rings for fuel systems.
- HNBR: Ideal for high-pressure oil and gas applications. Check our AS568 HNBR O-rings (90A).
3. Silicone and Fluorosilicone

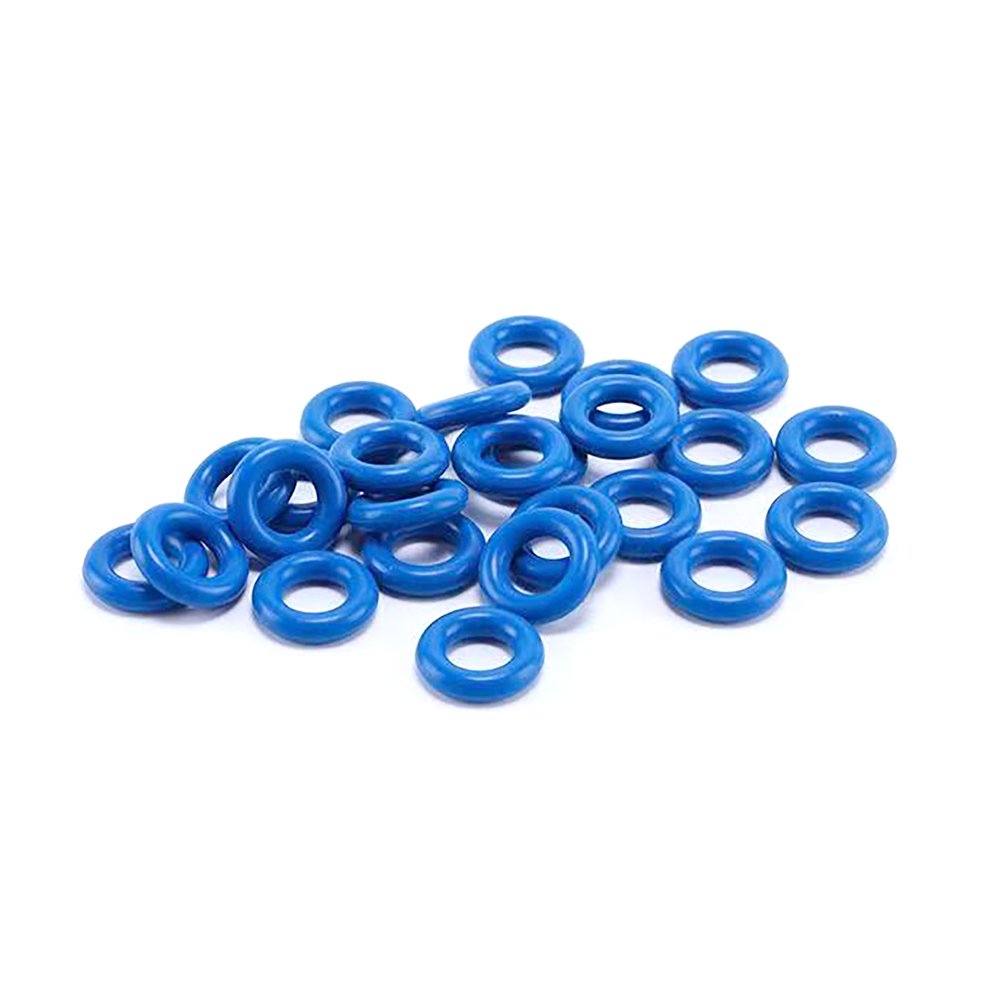

In food, beverage, and medical sectors, purity and temperature flexibility are key. Silicone offers excellent low-temperature flexibility but poor abrasion resistance. We provide FDA compliant silicone O-rings for medical devices and food grade O-rings for beverage dispensing machines. For applications requiring fuel resistance and low-temperature performance, low-temperature fluorosilicone (FVMQ) aerospace seals are the superior choice.
4. EPDM (Ethylene Propylene Diene Monomer)
EPDM O-rings for steam and hot water handling are the industry standard for utility applications. It is vital to note that EPDM must never be used with petroleum-based oils, as it will swell and disintegrate rapidly.
Advanced Sealing Designs: Beyond the Standard O-Ring
Sometimes, a standard rubber torus is not enough. Based on our project history with global heavy industry sectors, we often implement modified designs to solve specific issues.
Encapsulated O-Rings
In scenarios where you need the chemical inertness of PTFE but the elasticity of Viton or Silicone, we use FEP/PFA encapsulated seals for chemical processing. This often involves PTFE encapsulated O-rings with Viton core to solve the “cold flow” issue seen in solid PTFE.
Spring-Energized Seals
For high-precision dynamic applications, such as the internal actuators of a fiber laser cutting machine, or for spring energized PTFE seals for cryogenic applications found in LNG filling station nozzles (LNG refueling guns), a metal spring provides the constant sealing force where traditional rubber loses its flexibility and becomes brittle.
Seal Failure Analysis: Diagnosing Common O-Ring Failures
As a manufacturer, QZSEALS does more than supply parts—we perform systematic seal failure analysis to help customers prevent repeat issues. Below are the most common failure modes observed in our laboratory.
1. Compression Set
The Symptom: The O-ring flattens out and does not return to its circular shape causing a leak.
The Cause: The seal was exposed to excessive heat or the material was not properly cured. It effectively “baked” into the groove shape.
The Solution: Switch to a material with a higher operating temperature, such as upgrading from NBR to FEPM/AFLAS O-rings for steam and base resistance.
2. Extrusion and Nibbling
The Symptom: The edges of the O-ring look chewed or chipped.
The Cause: High pressure forces the material into the gap between mating metal parts.
The Solution: Increase the hardness (Durometer) of the seal, for example, moving from 70A to 90A. Alternatively, use a Backup Ring to close the clearance gap. You can compare hardness options here: HNBR 70A vs. NBR 90A.
3. Abrasion
The Symptom: One side of the O-ring is flattened or scratched.
The Cause: This occurs in dynamic applications (pistons or rods) where lubrication is poor.
The Solution: Improve lubrication or switch to materials with internal lubricants (like PTFE-filled compounds). For heavy-duty piston applications, we often recommend switching from a simple O-ring to a dedicated piston seal.

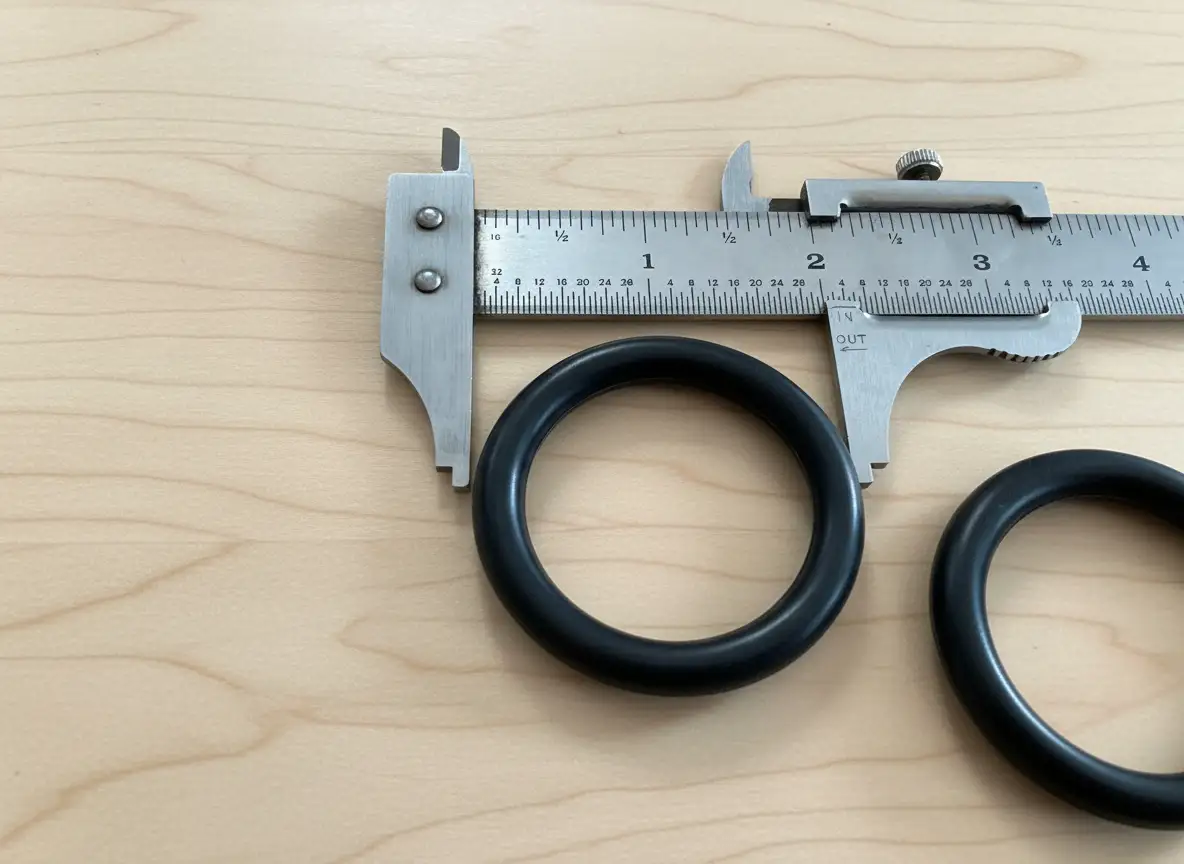

Sizing and Custom Fabrication
Standard sizes (like AS568 or ISO 3601) cover 80% of market needs. However, legacy machinery and specialized equipment often require custom molded seals.
Splicing and Vulcanizing
For large-diameter static seals where molding is cost-prohibitive, we use O-ring cord. We cut the cord to the exact length required and vulcanize the joint. This is a rapid solution for flange sealing and lid seals.
Check our raw materials here: O-ring cord category.
Custom Molded Solutions
QZSEALS specializes in full customization. Whether it is a custom L2M oil seal or a unique geometry for an aerospace valve, our lean and agile team can design the tooling and produce the part. We ensure that every product meets international standards before delivery.
Complementary Sealing Technologies
While the O-ring is versatile, it is not always the standalone answer. Complex systems often require a combination of sealing elements.
- Hydraulic Systems: O-rings are often used as static seals, while rod seals and wiper seals handle the dynamic cylinder movement.
- Rotary Shafts: An O-ring cannot handle high-speed rotation. For this, oil seals (like the TC profile) are required.
- Flange Sealing: For uneven surfaces, gaskets provide better conformity than O-rings. We offer everything from non-asbestos gaskets to PTFE gaskets.
Quality Assurance in Manufacturing
Our approach at QZSEALS is built on a “Lean and Agile” philosophy. Manufacturing a reliable O-ring involves strict process control:
- Raw Material Mixing: Precise weighing of polymers and curing agents.
- Molding: Using compression or injection molding at controlled temperatures.
- Post-Curing: Baking the seals to maximize physical properties.
- Inspection: Checking for flash, voids, and dimensional accuracy.
We apply this rigor to everything from standard rubber rings to specialized metal O-rings used in extreme vacuum environments.
Conclusion: The Trusted Partner for Sealing Technology
The O-ring seal is a marvel of engineering efficiency. Yet, its performance is entirely dependent on correct material selection and precise manufacturing. Whether you require a PTFE O-ring for chemical resistance or a robust rubber ring for general use, the expertise of your industrial O-ring manufacturer and the availability of custom sealing solutions play a decisive role in long-term reliability.
At QZSEALS, our mission is to deliver reliable, cost-effective, and innovative sealing solutions. We help clients worldwide solve critical sealing challenges in automotive, mining, and food sectors. By prioritizing quality control and offering technical support in design, we ensure your systems remain leak-free and efficient.
